The current page:Home > Products > CNC cutting machine > TDC series CNC cutting machine
Products

TDC XY intersecting line CNC cutting machine

Feature code:
  • Independent research and development to optimize CNC pipe system, Configuring the TIME application plug-in, excellent EGES DXF SAT and STL software compatibility.
  • The client can enjoy special cutting process development and life-long technical services free.
  • AC servo drive, transmission adopts precision planetary gear reducer

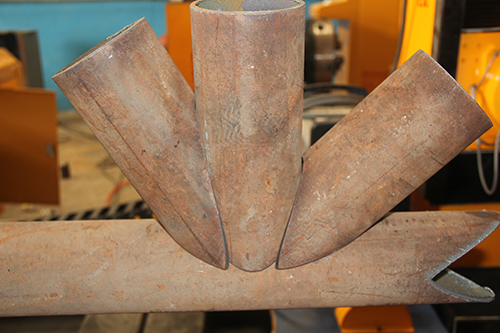

  • For workpiece of diameter 40-3000mm, length≤6000mm、thickness≤10mm, simple type TDC-XY3-B intersecting line cutting machine is recommended. The simple type machine can not cut bevel, it can only meet the hole processing request of end section, elbow and shrimp joint.

Model

TDC - XY

Effective cutting length (mm)

6000 (Can be customized)

Dimension (longitudinal track included)  (mm)

7800×1800×1650 (Standard)

Cutting method

Flame or plasma

Lifting stroke of torch (mm)

200

Cutting speed (mm/min)

Flame:20~700,   Plasma:500~3500

Cutting thickness (mm)

Flame:6~60,  Plasma:as per plasma power source

Control system

Industrial PC

Software

TIME PIPE

Working pressure of compressed gas (MPa)

≥7

Gas flow of plasma (L/h)

4500

Fuel gas

Acetylene / Propane
