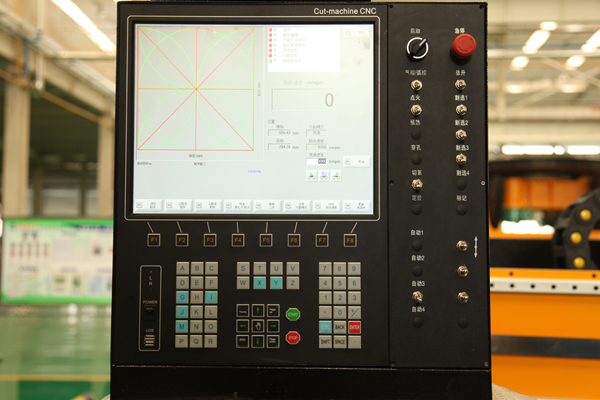

TIME I CNC system
Feature code：
-
Support EIA code(G code), FastCAM、FreeNest、SmartNest、IBE and other nesting software.
-
Graphic can be zoomed, rotation, mirrored and matrix arrangement,interactive arrangement, stacked arrangement.
-
Work piece original size and seam size intuitive display simultaneously.
-
Graphic calibration, any edge of steel plate can be used as reference for calibration.
-
Self-diagnostic system, inspection easlily and troubleshooting.
-
USB in front panel, easy to transfer program.
-
Oxygen gas, plasma,dusting, demo mode.
-
Edge cutting of thick steel plate to reduce warm-up time.
-
Automatic speed limit at the corner according to plate thickness so as to prevent over-burning effectively.
- Technical parameters
- Photograph
|
Model
|
TIME I
|
|
Monitor
|
17' LED screen
|
|
Processor
|
Industrial Arm9 chip
|
|
Memory
|
64M
|
|
Program memory
|
256M
|
|
External interface
|
USB、Support 16GB U disk
|
|
Operating system
|
-
|
|
Power
|
DC24V
|
|
RFI/EMI shielding
|
Full shielding，grounding
|
|
Available axis
|
2 axes (Standard)
|
